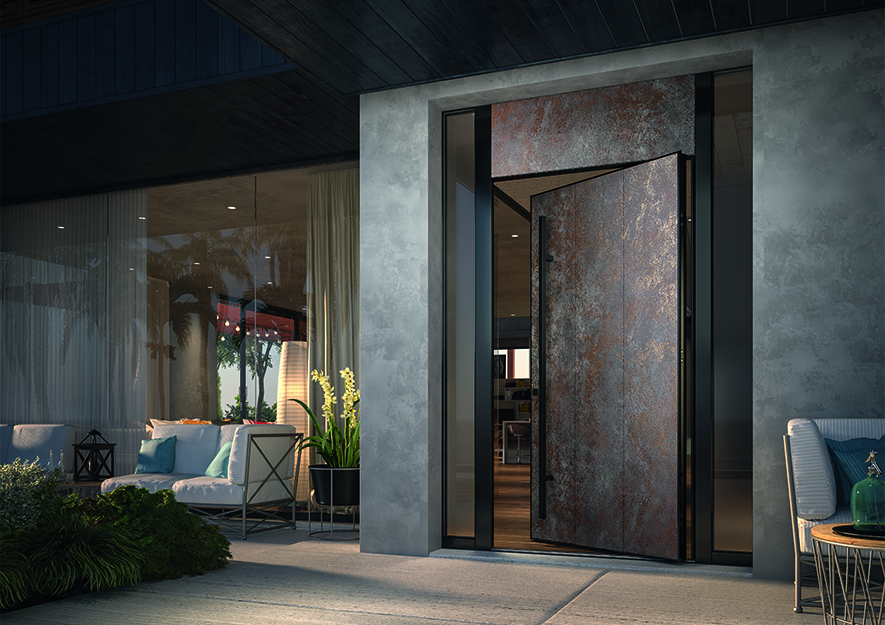

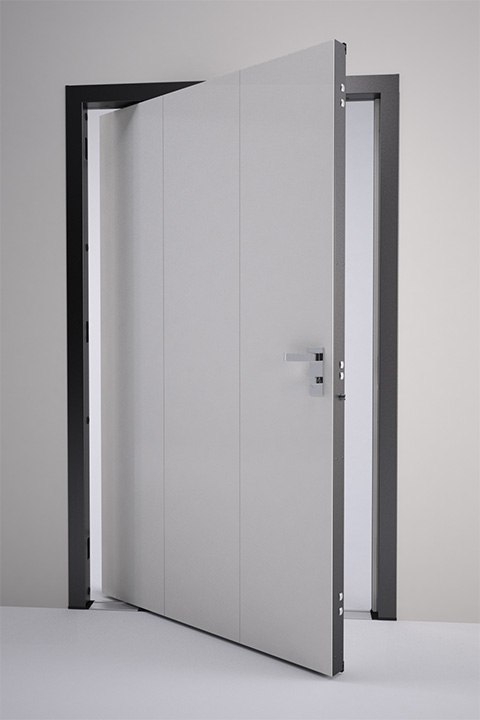

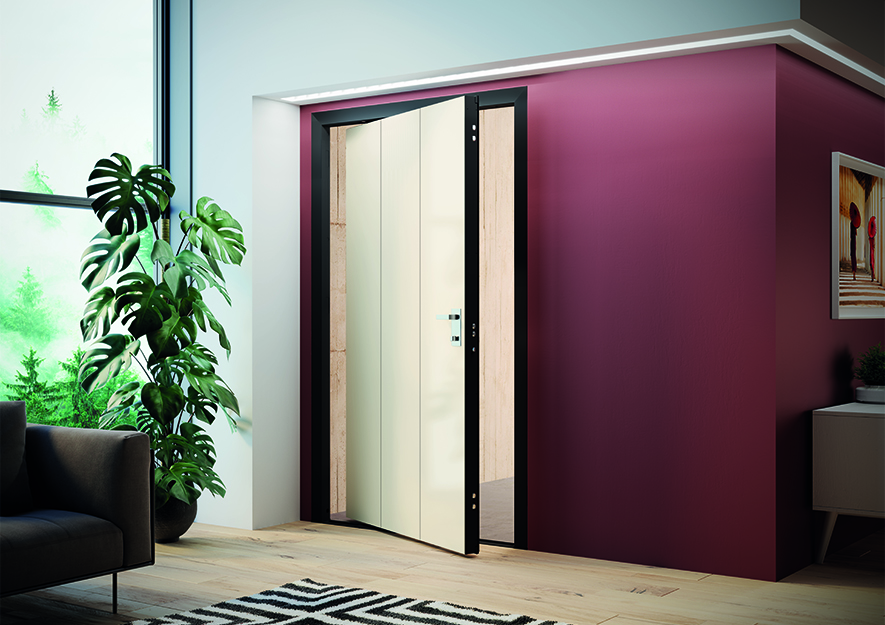

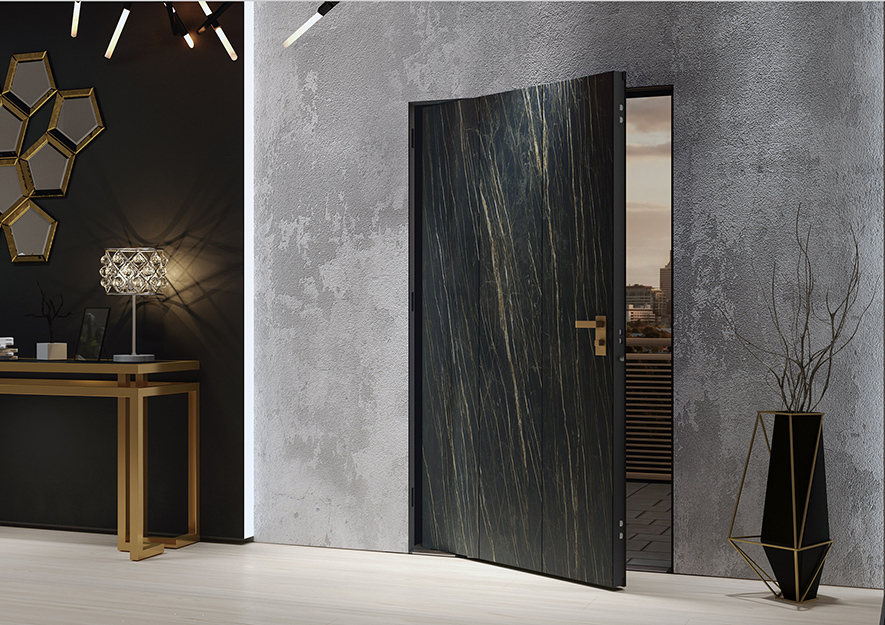

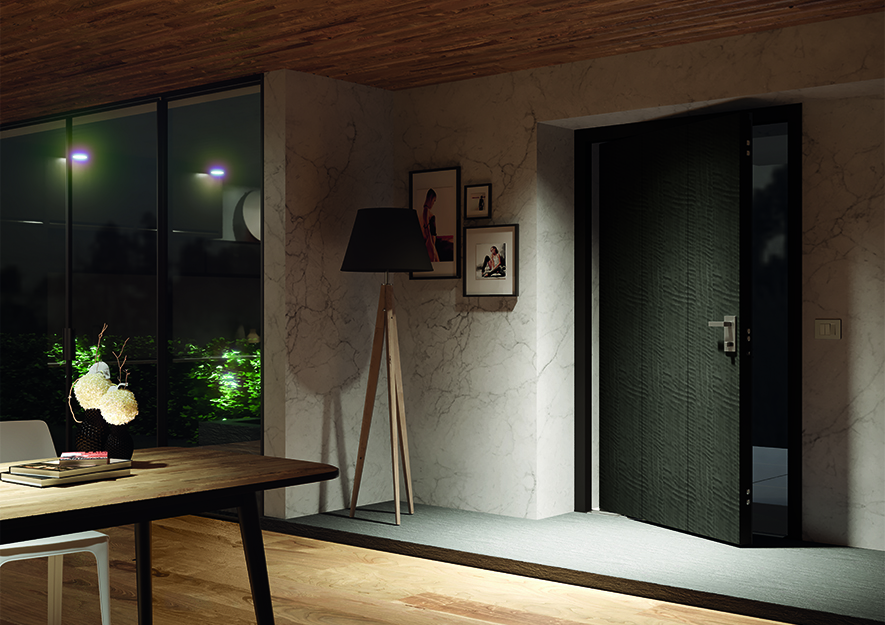

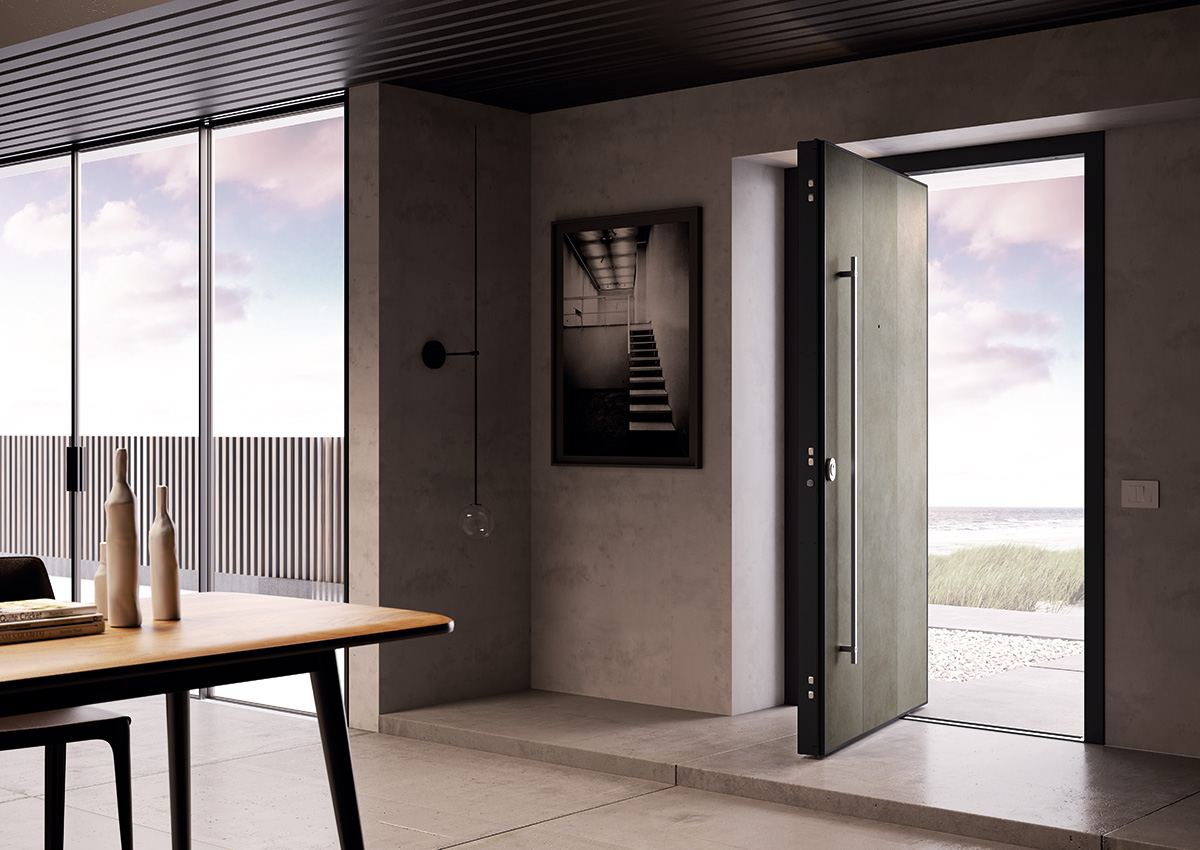

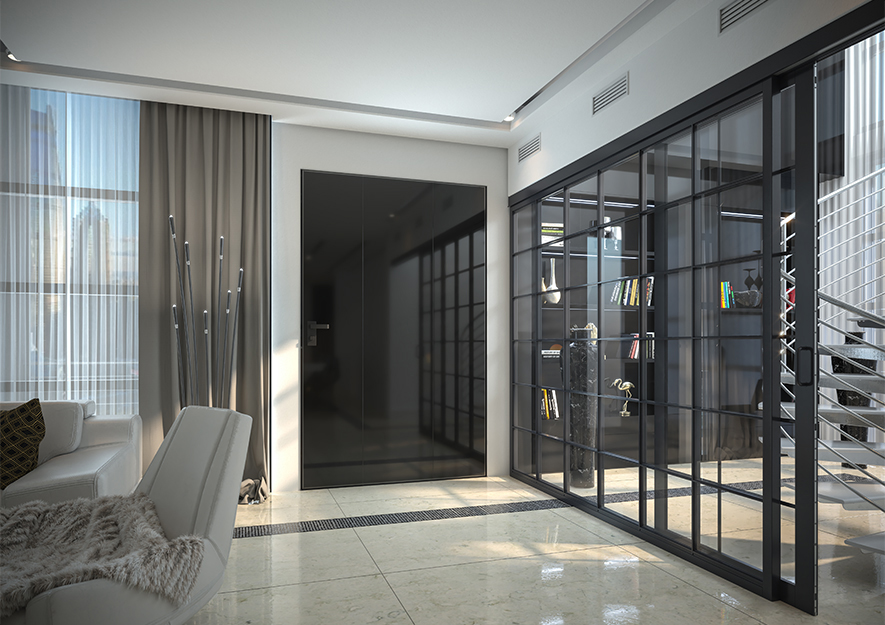

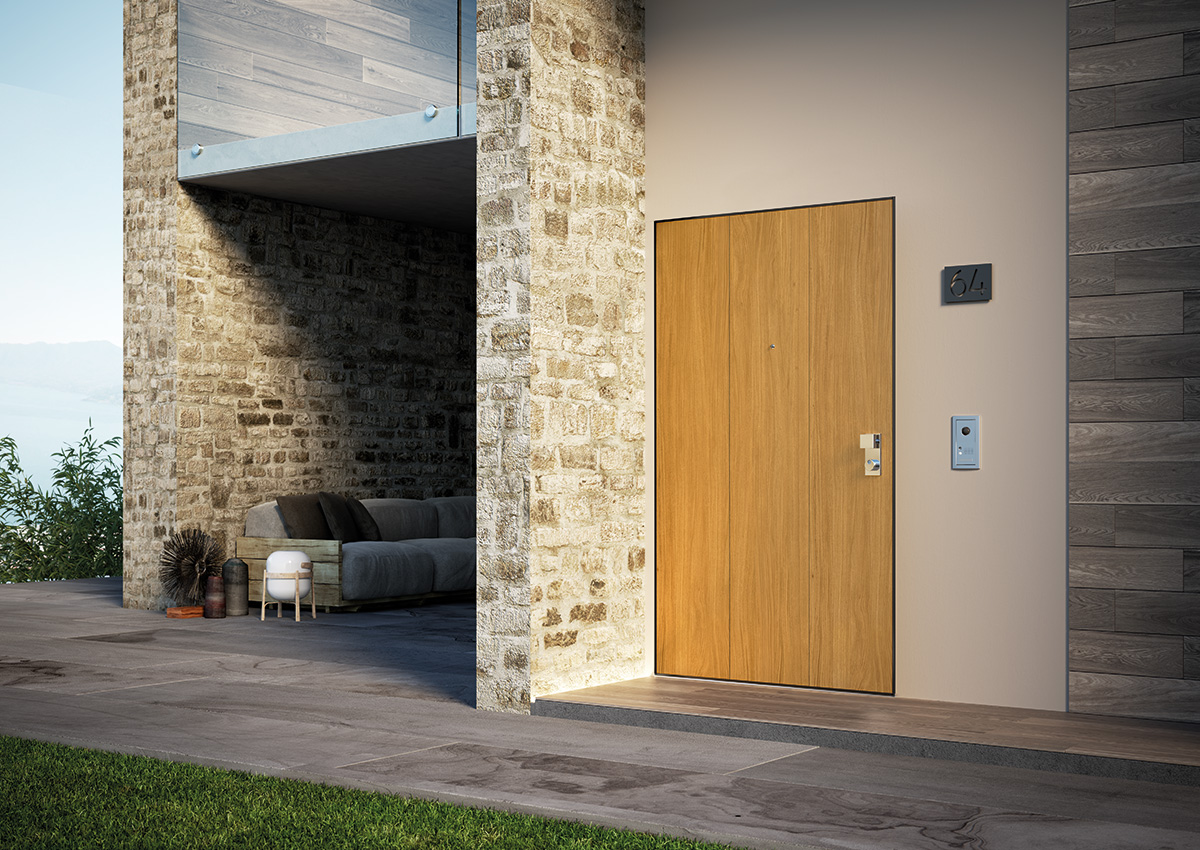

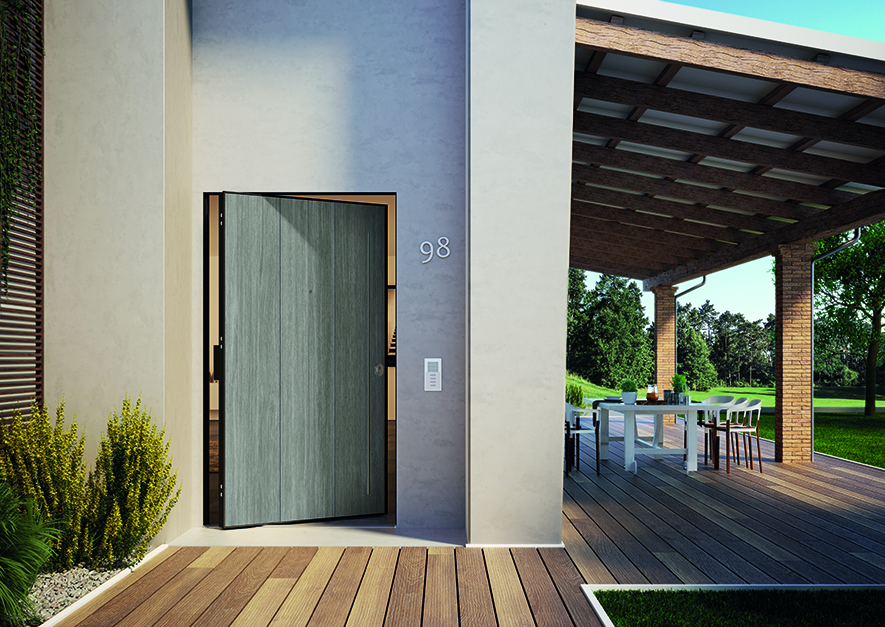

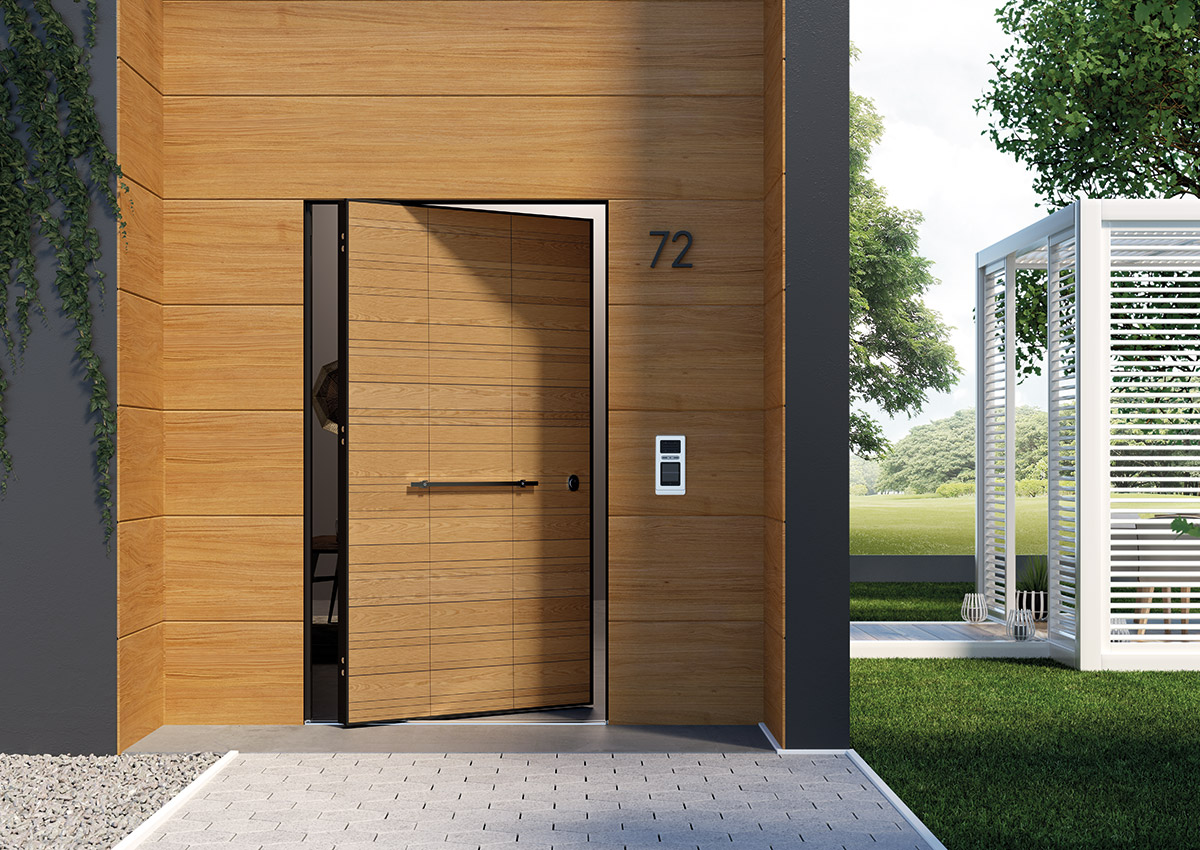

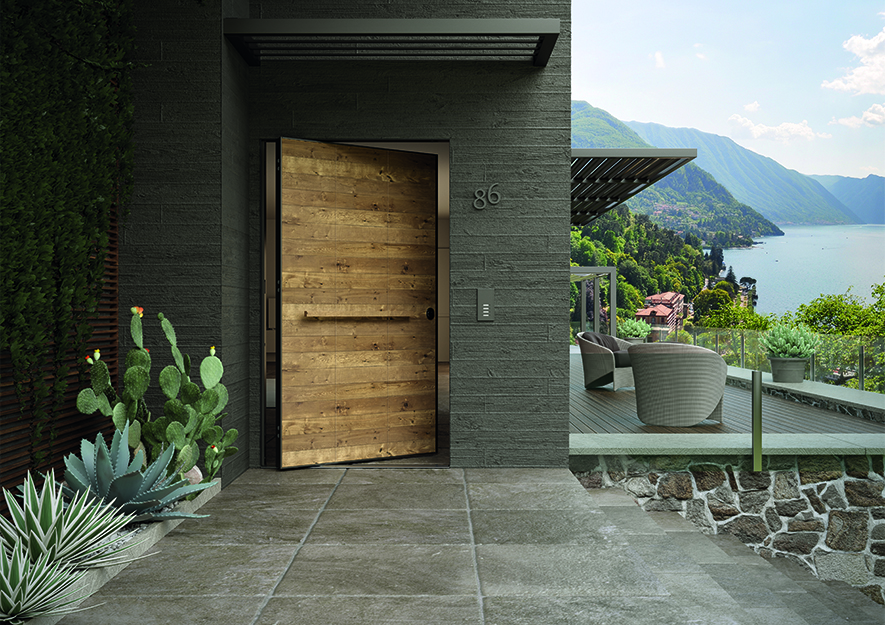

Di.Big

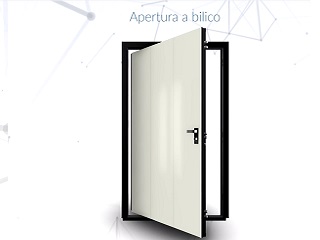

The pivot security door that combines design and safety in case of wide openings.

Planning your dreams’ house, you surely imagine it as a comfortable, refined and above all safe place.
Di.Big can satisfy all these expectations: it’s a security door with pivoting opening. It’s flush with the frame and equipped with double lateral deadbolts in both sides of the door-leaf.

Refined materials, accuracy in details and a stylish and simple design makes it an ideal piece of furniture for interiors; due to its thermal and acoustic performances and to the watertightness and air permeability, it’s also suitable for external use.

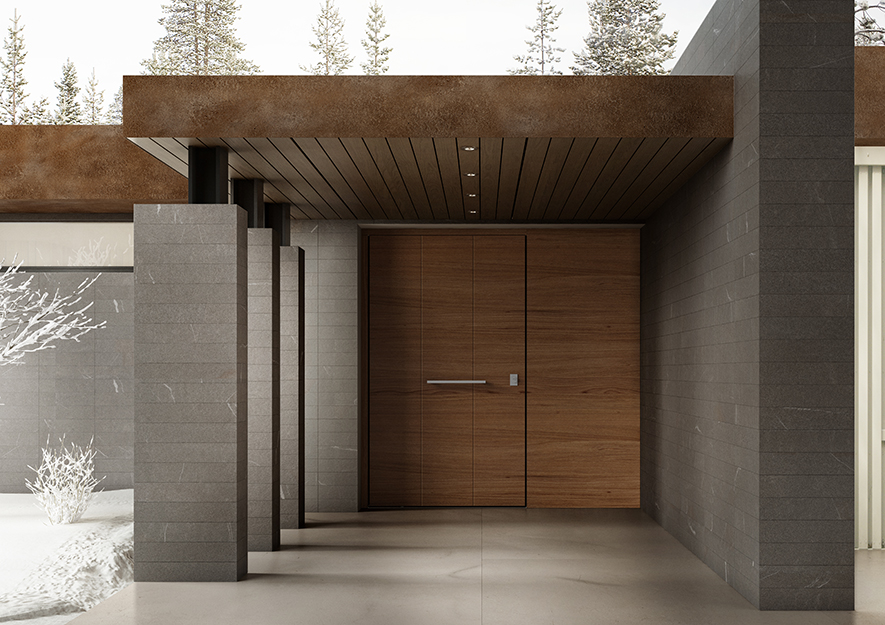

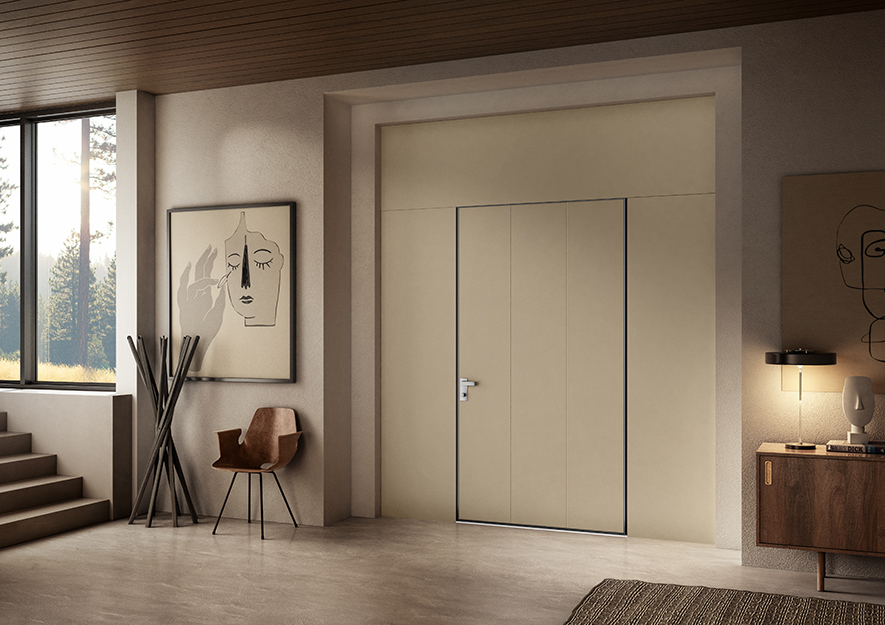

Di.Big is available with three different installation solutions: standard, flush with the internal frame for boiserie and flush with the external frame


Set up your door

Dimensions
Finishing

Flat in multilayer wood

Application is permitted only inside, in positions protected from atmospheric agents

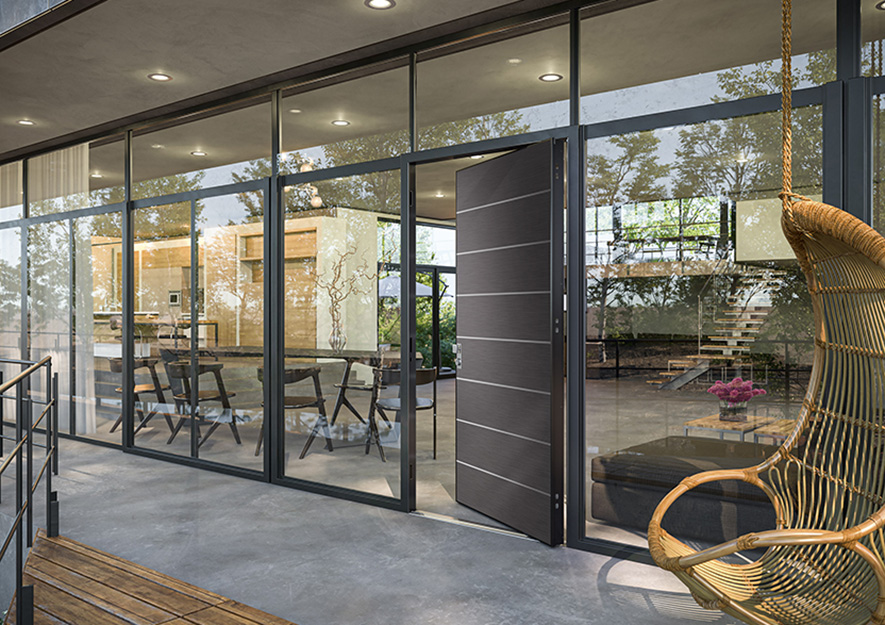

Alluminio by Ponzio

Application is permitted only inside, in positions protected from atmospheric agents

Laminam

Application outside, with full exposure to atmospheric agents is permitted.

Polymer-veneered panels for outside installation

Application outside, with full exposure to atmospheric agents is permitted.

Polymer-veneered panels for internal use

Application is permitted only inside, in positions protected from atmospheric agents

Flat lacquered panels

Application is permitted only inside, in positions protected from atmospheric agents

Installation solutions

Show all

Acoustic insulation
38 dB
Anti-intrusion
Class 4
Air permeability
Class 2
Resistance to wind load
Class 3

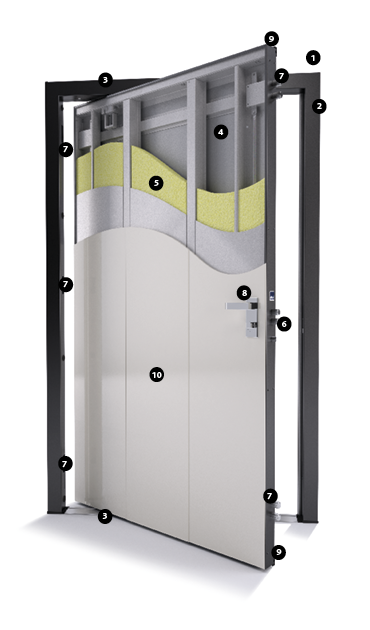

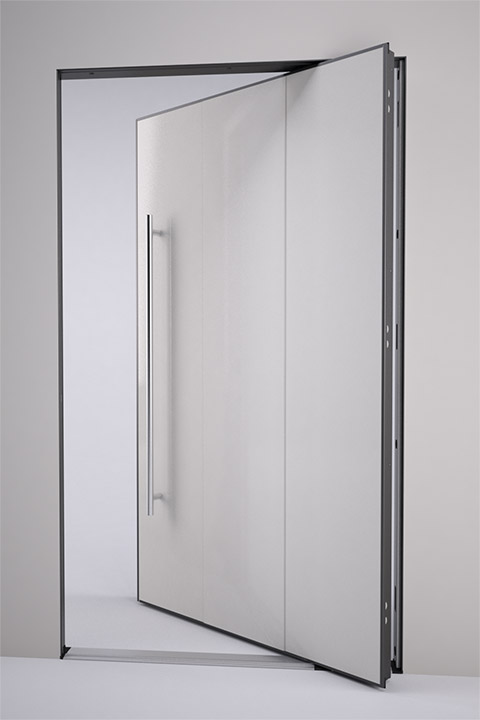

  1. Subframe made with 30/10 galvanized steel with 12 anchors to wall
  2. Frame made with 20/10  galvanized steel sheets, painted opaque black Ral 9005
  3. Pivoting hinges adjustable on three axes
  4. Doorleaf made of two galvanized steel sheets 20/10 thick.
  5. Internal feeling for thermal-acoustic insulation
  6. Security locking system with core with European cylinder with 1 master key + 5 keys with card equipped with manganese cover.
  7. Double lateral deadbolts: 2 on the lock side and 3 on the hinges side

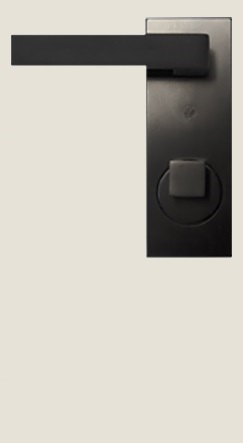

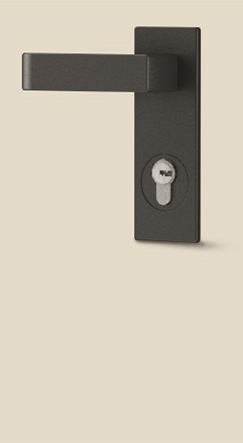

  8. Handle set in aluminium silver colour (inside handle + outside fixed knob), model “quadrata”

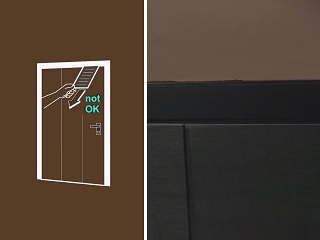

  9. Upper and lower weatherstrip bar and watertight threshold

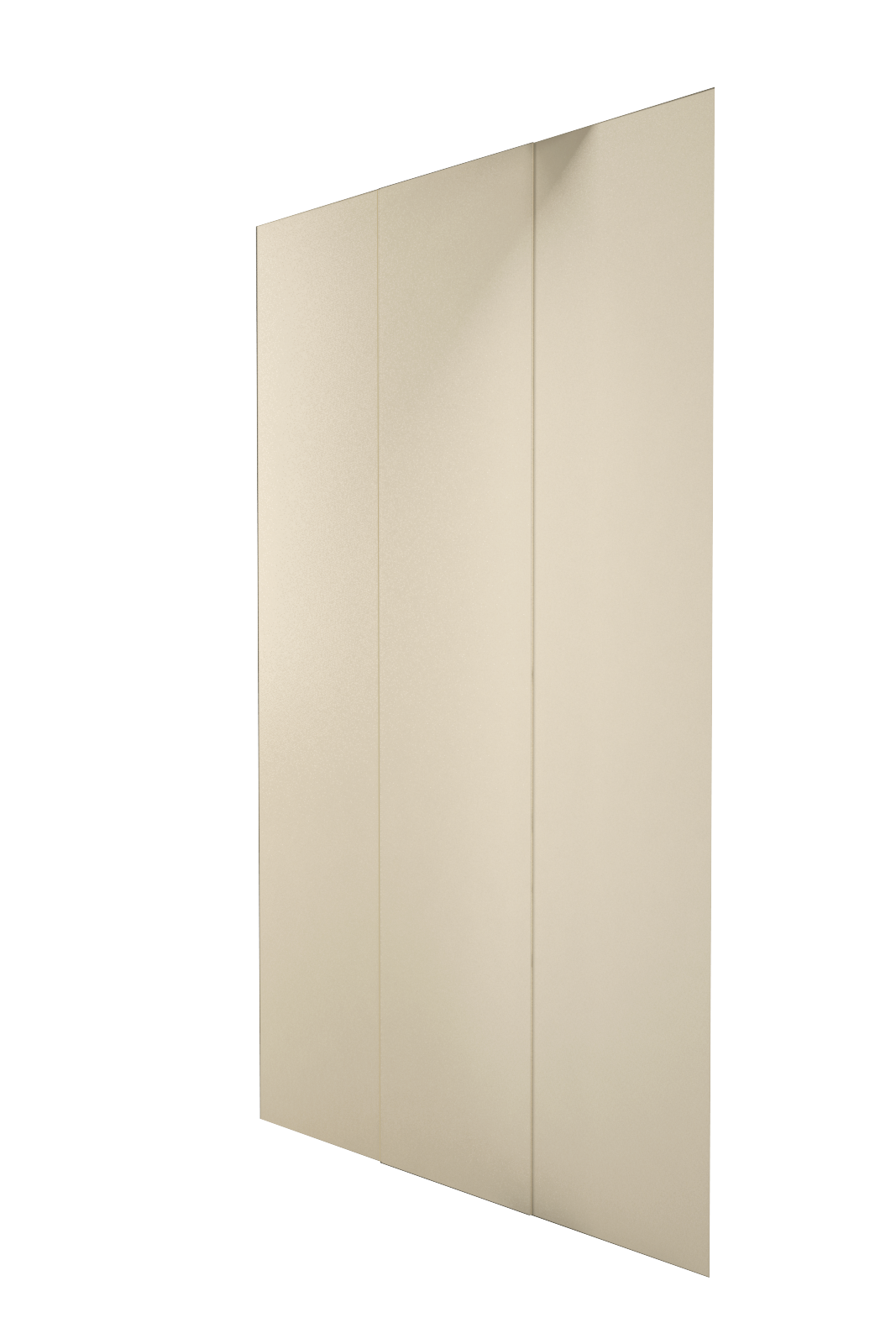

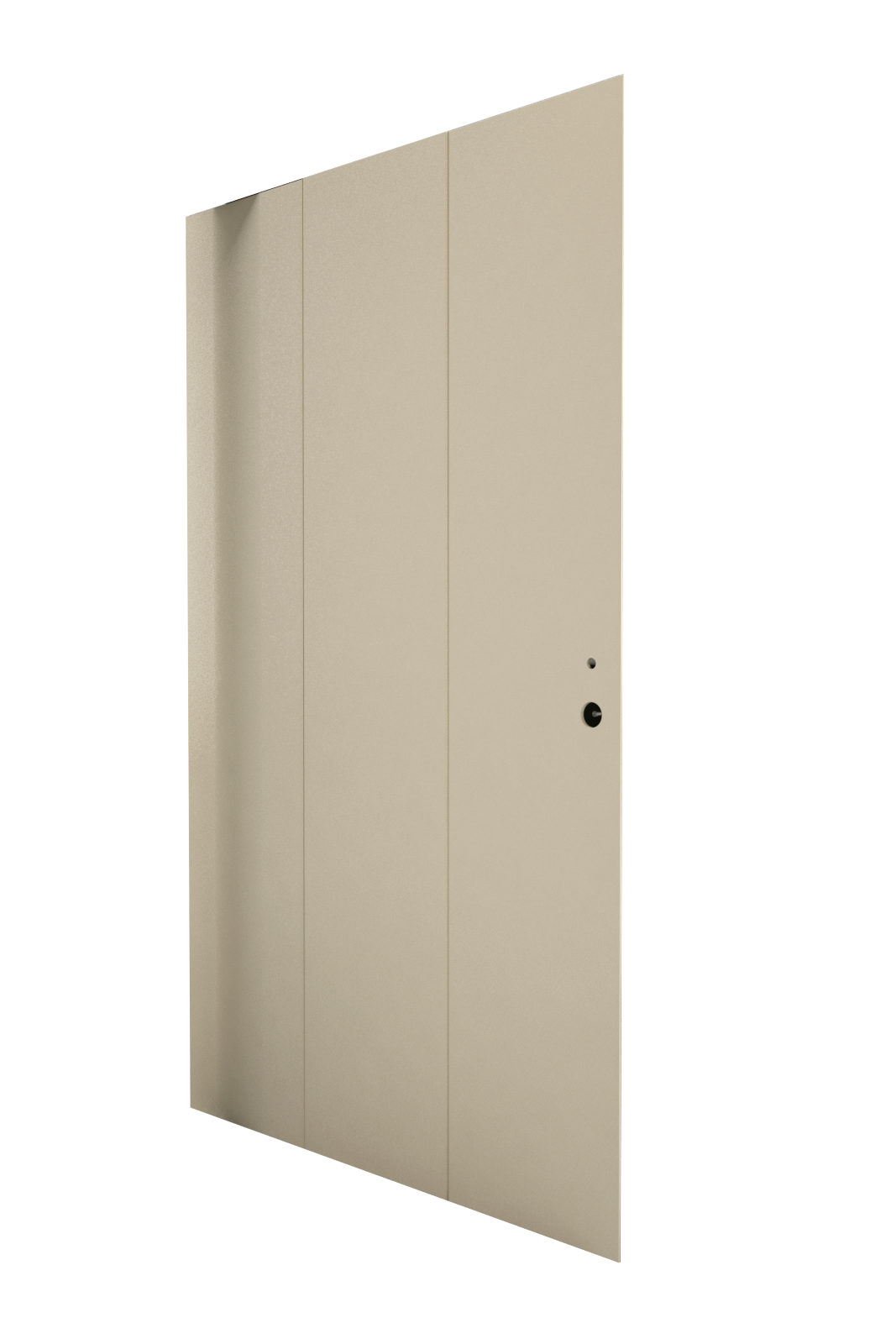

  10. Internal and external finishing panel designed with 3 vertical panels of different depths (10mm thick the side vertical panels and 13mm thick the central one)
  11. Predisposition for connecting alarm system and electronic lock

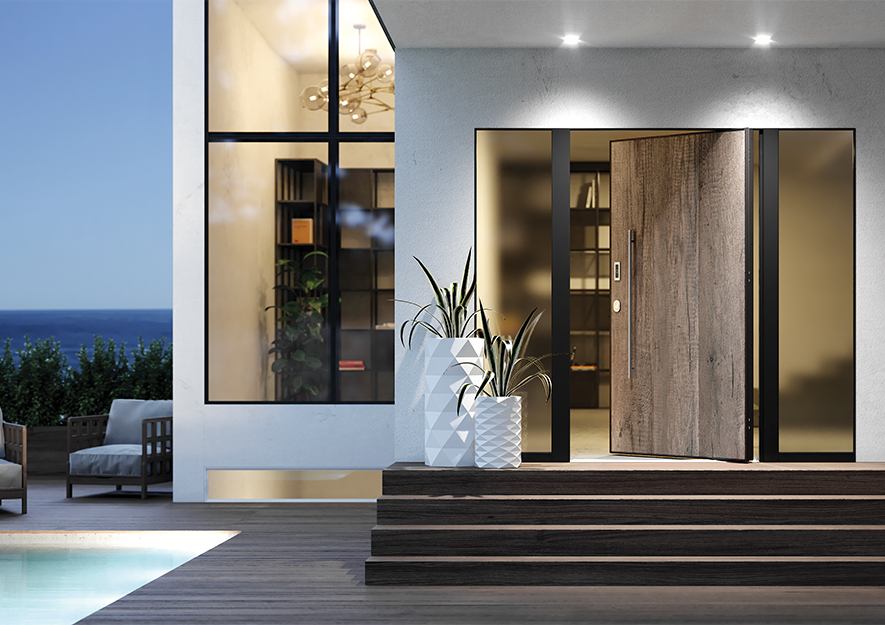

Electronic lock for pivot door

The pivot door electronic lock works with:

  • App from smartphone and tablet with customised access control
  • Digital keypad with secret code
  • Finger print scanner
  • Transponder

Door can be always opened with traditional key from the outside and little knob from the inside.

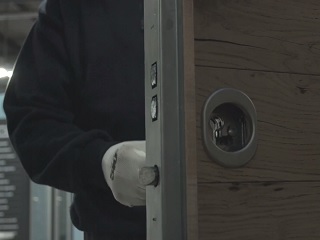

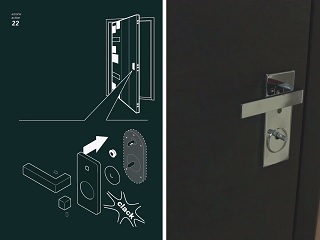

Mechanical lock for Di.Big pivot door

European cylinder locking system for Di.Big pivot door. The lock is equipped with double lateral deadbolts on the lock and on the hinges side. It is protected inside by a hardened steel drill-proof plate. The lock is availble as key-key or key-knob version.

Electromecanical lock Mottura XNOVA

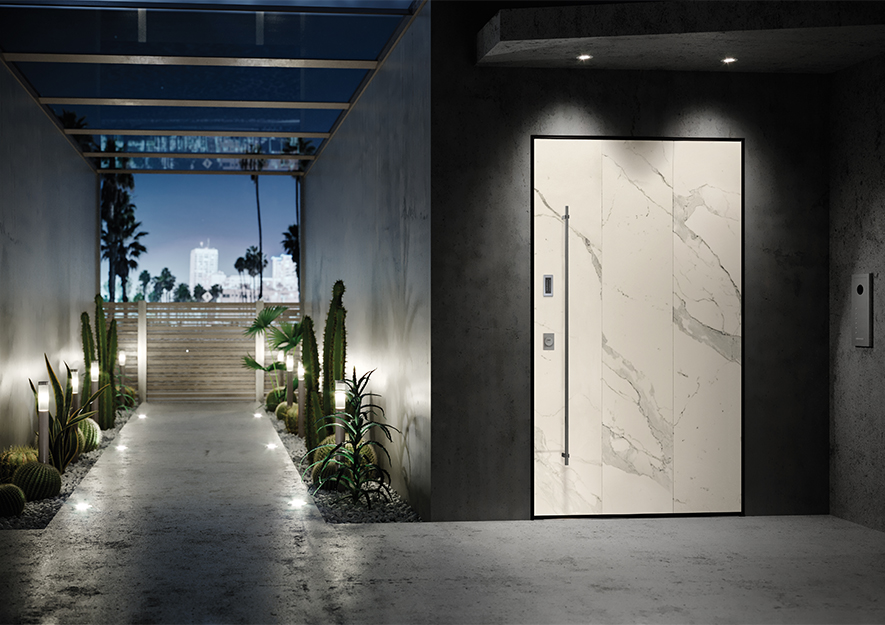

Security doors with electronic locking system are now proposed with Mottura lock, XNOVA model. The electro-mechanical locking system comes with European cylinder, any of Di.Bi. range. The locking system is either electronic and manual, to ensure the opening in case of power cut. This lock can come with digital keypad with secret code, eKey or Mottura fingerprint reader or with a Mottura digital keypad combined with finger print reader. The lock is compatible with all handle sets proposed by Di.Bi.

eKey Fingerprint reader

Securemme or ISEO Electro-mechanical locking system with European cylinder with master key and 5 user keys  and opening system with finger print reader. The locking system is either electronic and manual, to ensure the opening in case of power cut. The software has to be installed in the wall, together with the lock software and it's compatible with smarthome systems as well. eKey fingerprint is available in silver, black and white colour.

Top security European Cylinder EVVA 3KS

3KSplus is the most resistant mechanical locking system, due to its unique, patented, springless operating principle. Unlike conventional cylinders, in 3KSplus the locking elements move along the curves on the key and are not driven against a spring force. The reversible key have a unique rounded tip and overlapping curve millings, that practically rules out key manipulation within the locking system. The additional coding also provides highest security. 3KS ensures picking and scanning protection,drilling and plug pulling protection. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.

High security European Cylinder EVVA ICS

ICS offers different locking technologies for high protection: the time-tested curve system, the durable length profi le and distinctive track system with internal recesses. It ensures anti-picking and scanning protection, drilling and plug pulling protection. It is produced in modular design and can be adapted to the door requirements directly on-site. The high-quality nickel silver alloy make the key durable and resistant. The concealed, inner recesses make unauthorised duplication of keys practically impossible. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.

Longhandle with fingerprint reader by E-Key

Longhandle with fingerprint reader by E-Key

Maniglieria interna nera Quadrata

Maniglieria interna nera Quadrata

Pomolo esterno nero Quadrata

Pomolo esterno nero Quadrata

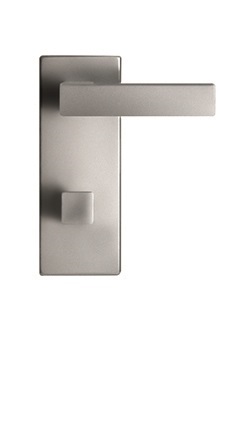

Handle kit Quadrata

Handle kit Quadrata

Quadrata knob

Quadrata knob

Long Handle

Long Handle

Maniglione Tondo Nero

Maniglione Tondo Nero

Maniglione Quadrato nero

Maniglione Quadrato nero

White milk

White milk

Bronze

Bronze

Satinated Bronze

Satinated Bronze

White satinated

White satinated

Stopsol Bronze

Stopsol Bronze

Stopsol light

Stopsol light

Transparent

Transparent

Rovere termocotto
Rovere termocotto
Rovere castagno
Rovere castagno
Rovere sbiancato
Rovere sbiancato

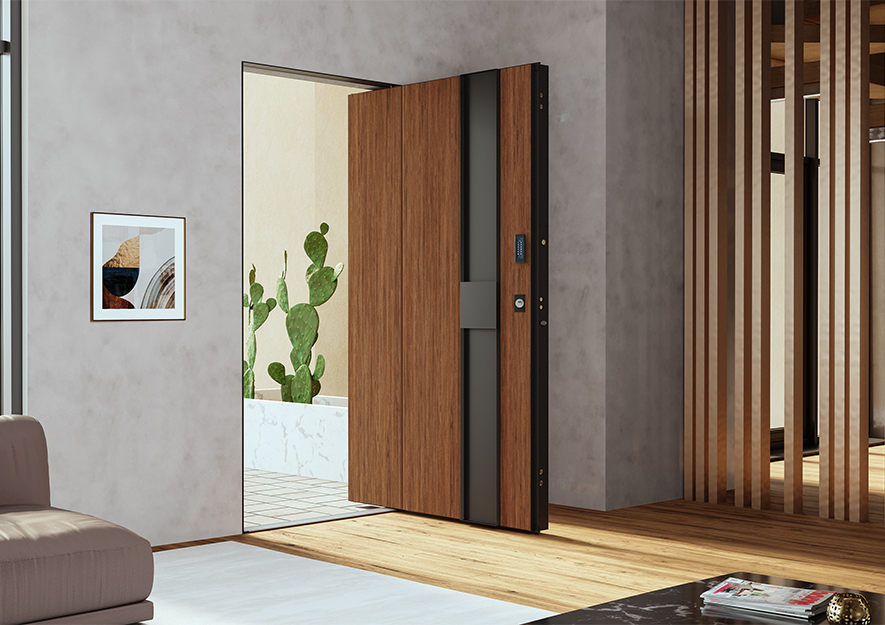

Rovere tinto noce
Rovere tinto noce
Okoumé tinto noce 06
Okoumé tinto noce 06
Wengé
Wengé
Teak
Teak
Decorated wood Frisé
Decorated wood Frisé
Natural Oak
Natural Oak
Aged oak
Aged oak
Smoked oak
Smoked oak
Noce canaletto
Noce canaletto
Bronzo Spazzolato OXBR
Bronzo Spazzolato OXBR
Brased Specchio Fine
Brased Specchio Fine
Uberall Rovere 44
Uberall Rovere 44
Brased Iron
Brased Iron
Polycrom OXNE
Polycrom OXNE
Brased Fine Gold
Brased Fine Gold
Polycrom OXAR
Polycrom OXAR
Uberall Wengé
Uberall Wengé
White RAL 9010
White RAL 9010
Brased Tungsteno
Brased Tungsteno
Ferro Micaceo
Ferro Micaceo
Brased Ruggine
Brased Ruggine
Argento Vunc
Argento Vunc
Velvet Artic Normal
Velvet Artic Normal
Grigio Fumo
Grigio Fumo
Calce Terracotta
Calce Terracotta
Collection - Nero assoluto
Collection - Nero assoluto
Noir Desir
Noir Desir
Bianco Statuario
Bianco Statuario
Oxide - Bianco
Oxide - Bianco
Oxide - Moro
Oxide - Moro
Oxide - Nero
Oxide - Nero
Oxide - Perla
Oxide - Perla
Seta - Gris
Seta - Gris
Golden oak- Standard
Golden oak- Standard
Ancient Teak
Ancient Teak
Desert Oak
Desert Oak
Veralinga White
Veralinga White
Mahogany- Standard
Mahogany- Standard
Amaranth Oak
Amaranth Oak
Concrete Oak
Concrete Oak
Mountain Oak
Mountain Oak
Turner Oak
Turner Oak
Gold walnut- Standard
Gold walnut- Standard
Black
Black
Black Matt Stylo
Black Matt Stylo
White- Standard
White- Standard
Cream white- Standard
Cream white- Standard
Moss green- Standard
Moss green- Standard
Dark red- Standard
Dark red- Standard
Dark green- Standard
Dark green- Standard
Brilliant blue 5007- Standard
Brilliant blue 5007- Standard
Grey 7016- Standard
Grey 7016- Standard
Brown marron 8099- Standard
Brown marron 8099- Standard
Light Grey
Light Grey
Antracite- Standard
Antracite- Standard
Ceylon C34- Standard
Ceylon C34- Standard
Siena PR- Standard
Siena PR- Standard
Avellino
Avellino
Kolonial
Kolonial
Metallic Wood Mocca
Metallic Wood Mocca
Metbrush Schoko
Metbrush Schoko
Pastellgruen
Pastellgruen
Sheffield Oak Light
Sheffield Oak Light
White 9010- Standard
White 9010- Standard
Flemish gold C33- Standard
Flemish gold C33- Standard
Mahogany- Standard
Mahogany- Standard
Light walnut- Standard
Light walnut- Standard
Pine- Standard
Pine- Standard
Oak- Standard
Oak- Standard
Magnolia- Standard
Magnolia- Standard
Mais yellow- Standard
Mais yellow- Standard
Cromo yellow- Standard
Cromo yellow- Standard
Lacquered white- Standard
Lacquered white- Standard
Lacquered black- Standard
Lacquered black- Standard
Ral 1015
Ral 1015
Ral 9006
Ral 9006
Ral a campione
Ral a campione

Documents download

Instruction manuals
File BIM
Performances - Reg. EU 305/2011
Technical drawings
  • Instruction manual for fingerprint cabeling 300,92 KB
    DOWNLOAD
  • Instruction manual for the installation and use of eKey fingerprint 1,37 MB
    DOWNLOAD
  • Instruction manual for the installation of the subframe of Di.Big pivot door 2,00 MB
    DOWNLOAD

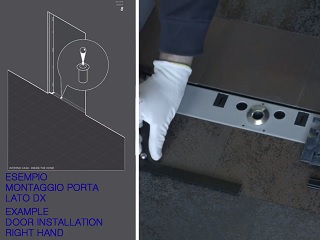

  • Instruction manual for the installation of Di.Big pivot door 4,69 MB
    DOWNLOAD

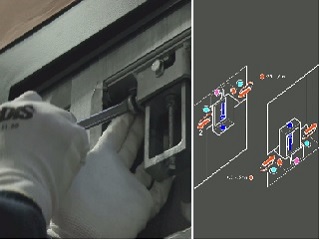

  • Pivot door handling tool 1,77 MB
    DOWNLOAD
  • BIM File for Di.Big pivot security door in .rfa 1,39 MB
    DOWNLOAD
  • Wind and air certification for DiBig pivot security door 3,50 MB
    DOWNLOAD
  • Acoustic certification for Di.Big pivot security door 1,70 MB
    DOWNLOAD
  • Anti-intrusion certification of Di.Big pivot security door 1,96 MB
    DOWNLOAD
  • Installation solutions for Di.Big pivot door 4,96 MB
    Installation solutions of pivot door (update September 2021) DOWNLOAD
