Briareo

Extending Grille Briareo

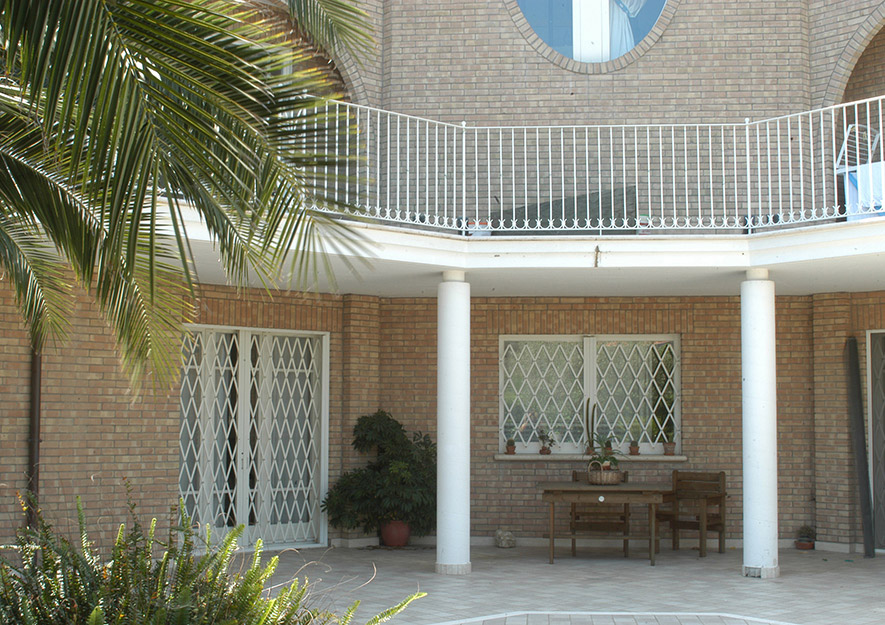

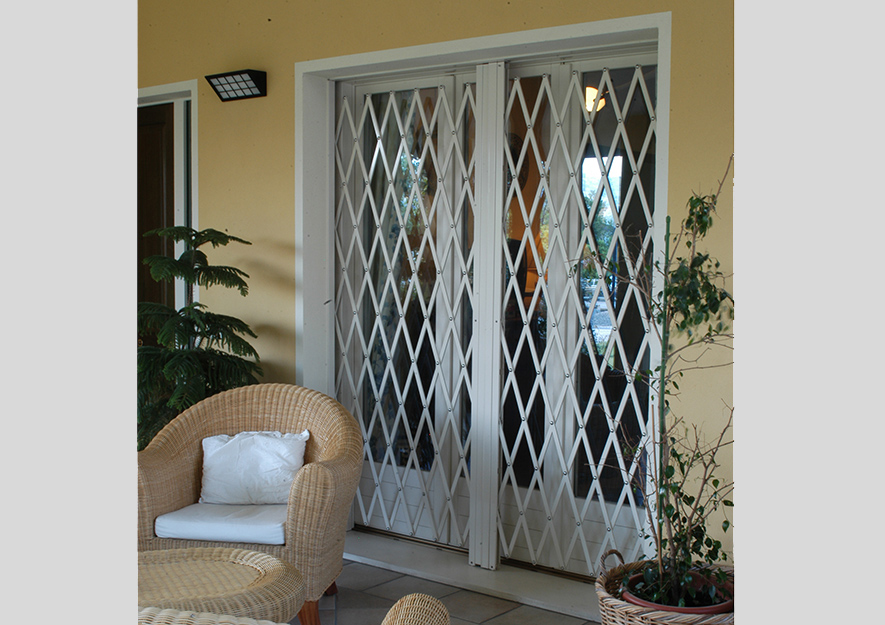

Briareo is the first patented folding grille, easy to open and close thanks to its "accordion. Particularly strong being manufactured with full steel bars, it is mechanically operated and suitable for installation on any type of windows or balcony door.

Briareo is the only product of this kind that does not need a bottom guide rail: the look of the fitting is therefore not altered and it allows an easy installation avoiding any difference in level and keeping the passage free.

It is available in the colours of Vesta shutter, and in stainless steel, it is also available ad single or double leaf and with external or walled frame.

Briareo extending grill is certified in class 3 anti-intrusion.

FIND A PARTNER
ASK FOR INFO ABOUT THIS PRODUCT

Security for windows

Anti-intrusion
Class 3
  • Mechanical "accordion-like" structure with external or walled frame
  • Available as single leaf or double leaf for window and French window
  • Jambs made of 20/10 thick steel sheet to fix in the wall with wall anchors with chemical resin (not provided)
  • Full C40 steel bars of 20x8 mm, or AISI 316L stainless steel bars of 20x8 mm, with stainless steel joints
  • Inverted U section made of steel sheet with aluminium guide rail and sliding carriage
  • No bottom guide rail
  • Surface treatment of bars and jambs: cataphoresis treatment and painting with epoxy powders
  • Locking system in the semi-fixed jamb with European cylinder
  • European cylinder with 3/5 key whose code can be changed (1+3 keys for orders up to 5 grilles; 1+5 keys for orders of more than 5 grilles)
  • Inside flush pull handle, black colour, keyhole inside the house (upon request, passing through key and handle)
  • Maintenance is needed with specific cleaner WD40, especially close to marine areas.



The subframe, made of 15/10 steel, is walled on the sides with wrench-proof chemical screws.

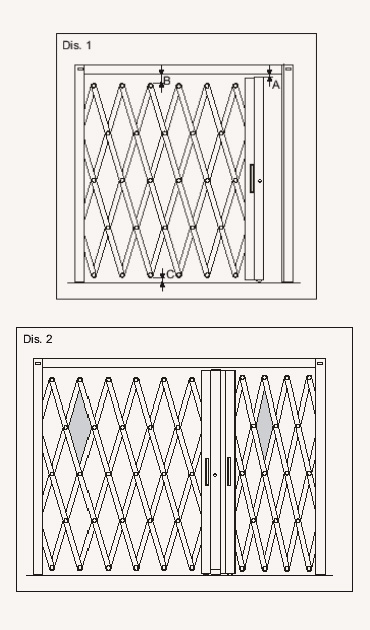

Dis. 1 - The distance (A) between the sliding jamb and the upper guide changes according to the height of the grille. This aspect is a specific feature of the grille and it cannot be modified. The dimensions (B) and (C) change according to the grille dimension and they differ from one another.

Dis.2 The area of the rhombus changes from one grille to another, being related to height and width of the grille. For this reason it is not possible to have one grille next to another one with the same area of the rhombus. This aspect is a specific feature of the grille and it cannot be modified.

Briareo locking systems

Ivory 9001

Ivory 9001

Grey 7016

Grey 7016

White 9010

White 9010

Black 9005

Black 9005

Brown 8017

Brown 8017

Green 6005

Green 6005

Grey 9006

Grey 9006

1 leaf for window: W from 600 to 1200 mm; H from 600 to 1839 mm
2 leaves for window: W from 1200 to 2400 mm H from 600 to 1839 mm

1 leaf for french-window: W from 600 to 1200 mm; H from 1840 to 2789 mm
2 leaves for french-window: W from 1200 to 2400 mm H from 1840 to 2789 mm


ACCESSORIES

Show all

Documents download

Instruction manuals
Checklist for taking dimensions
Performances - Reg. EU 305/2011
Products guarantee
  • Instruction Manual for standard Extending Grille 1.52 MB
    Instruction Manual for standard Extending Grille (rev.2 dated 06-2014) DOWNLOAD
  • Reinforcement devices against burglary for extending grills 544.76 KB
    Instruction Manual for the installation for safety reinforcing devices against burglary DOWNLOAD
  • Checklist for taking dimensions of the extending grill 7.12 MB
    Checklist for taking dimensions of the extending grill in the most appropriate way (rev.1.2) DOWNLOAD
  • Extending Grille - security class 1.54 MB
    Extending Grille Certification - security class 3 DOWNLOAD
  • Guarantee for Di.Bi. products 25.95 KB
    Guarantee statement for all Di.Bi. products (rev. July 2018) DOWNLOAD
  • Form Installation Check 571.32 KB
    Form for the Installation Check - to be used after the installation DOWNLOAD
Technical drawings
  • DibiBlind technical drawings 127.54 KB
    <p>DibiBlind extending grill technical drawings (rev March 2nd&nbsp;2012)</p> DOWNLOAD
