• Security doors Opentech - single leaf

Opentech - single leaf

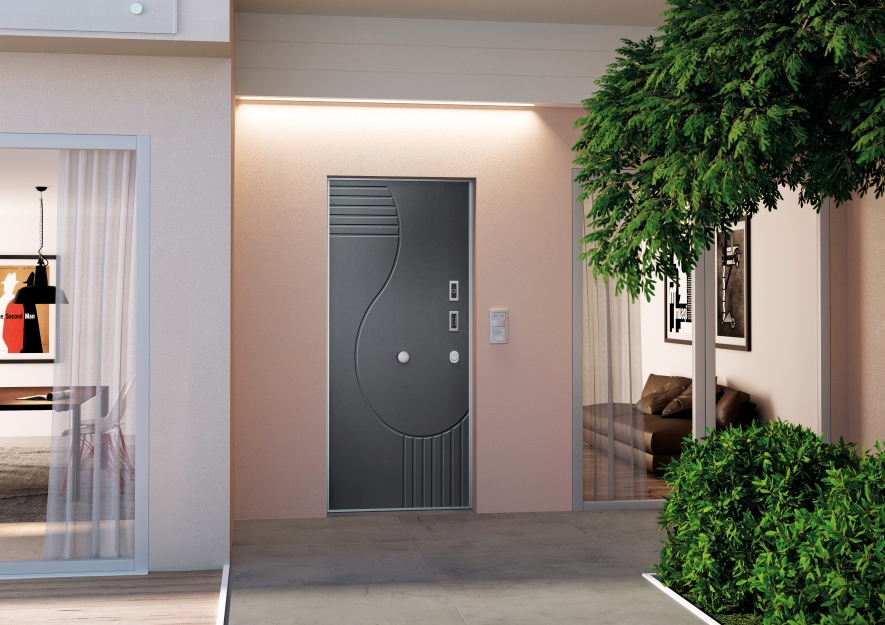

The security door with finger print opening system

Opentech is the most hi-tech security door among Di.Bi models.

Opentech is equipped with the electromechanical locking system and finger print scanner, it allows to register up to 99 finger prints, so you don't need to duplicate keys anymore.

This locking system includes all opening methods offered by Di.Bi.:

  • Finger print scanner,
  • Digital keypad with secret code,
  • Transponder,
  • Card,
  • Traditional key

Opentech is now available with a max width of 110 cm.

FIND A PARTNER
ASK FOR INFO ABOUT THIS PRODUCT

Finishing panels for security doors

Security for windows

Thermal insulation
1,13 - 1,26 W/m²K
Acoustic insulation
30-31 dB
Anti-intrusion
Class 3
Air permeability
Class 3
Resistance to wind load
Class 5
Watertightness
Class 9
Installation
Security doors for external installation
Acoustic insulation notes
30 dB with external panel 4mm thick 31 dB with external panel 10mm thick
Thermal transmittance notes
1,26 W/m²K with external panel 4mm thick 1,13 W/m²K with external panel 20mm thick
  1. Subframe made with 20/10 thick galvanized steel with 12 anchors to wall
  2. Frame made with 20/10 thick galvanized steel, painted grey Ral 9006 and complete with plastic covers, gasket and footers. Standard colour: brown Ral 8017.
  3. Adjustable hinges on 3 axes with hinge covers of the frame colour
  4. Doorleaf made of two galvanized steel sheets 16/10 thick. Gasket in the perimeter of the leaf
  5. Thermal insulation with high density polyurethane
  6. Wide-angle peephole
  7. Electromechanical locking system with European Cylinder with one master key and 5 user keys, solution key-key with inside fast unlock, equipped with drill-proof manganese cover. Opening system with digital keypad, card or key. The locking system is either manual and electric
  8. Door leaf detector
  9. Lateral deadbolts
  10. Weatherstrip bar or bottom rebate of the door threshold
  11. 5 fixed deadbolts on the hinge side
  12. Control unit.
  13. Handle set in aluminium silver colour (inside handle + outside fixed knob)



Electronic locking system Mottura BNOVA

Security doors with electronic locking systems are now proposed with Mottura lock, BNOVA model. The electro-mechanical locking system comes with EVVA ICS and 3KS European cylinders. The locking system is either electronic and mecanical, to ensure the opening in case of power cut. This lock can come with digital keypad with secret code, Mottura fingerprint reader, inside opening button or remote control. This lock is also available with cable free devises and bluetooth technology. The lock is compatible with all handle sets proposed by Di.Bi.

eKey Fingerprint reader

Securemme or ISEO Electro-mechanical locking system with European cylinder with master key and 5 user keys  and opening system with finger print reader. The locking system is either electronic and manual, to ensure the opening in case of power cut. The software has to be installed in the wall, together with the lock software and it's compatible with smarthome systems as well. eKey fingerprint is available in silver, black and white colour.

Top security European Cylinder EVVA 3KS

3KSplus is the most resistant mechanical locking system, due to its unique, patented, springless operating principle. Unlike conventional cylinders, in 3KSplus the locking elements move along the curves on the key and are not driven against a spring force. The reversible key have a unique rounded tip and overlapping curve millings, that practically rules out key manipulation within the locking system. The additional coding also provides highest security. 3KS ensures picking and scanning protection,drilling and plug pulling protection. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.

High security European Cylinder EVVA ICS

ICS offers different locking technologies for high protection: the time-tested curve system, the durable length profi le and distinctive track system with internal recesses. It ensures anti-picking and scanning protection, drilling and plug pulling protection. It is produced in modular design and can be adapted to the door requirements directly on-site. The high-quality nickel silver alloy make the key durable and resistant. The concealed, inner recesses make unauthorised duplication of keys practically impossible. It's provided with 3 or 5 key plus a disposable cyclinder to change after installation.

Longhandle with fingerprint reader by E-Key

Longhandle with fingerprint reader by E-Key

Inside squared black handle for electronic lock

Inside squared black handle for electronic lock

Poker knob

Poker knob

Blip

Blip

Sensunels - Fluke

Sensunels - Fluke

Sensunels - Korpo

Sensunels - Korpo

Sensunels - Sike

Sensunels - Sike

Sensunels - Twist

Sensunels - Twist

Long Handle

Long Handle

Squared longhandle in stainless steel

Squared longhandle in stainless steel

Round black longhandle

Round black longhandle

Squared black longhandle

Squared black longhandle

cm W from 70 to 100 x - H from 190 to 245 (steps of cm 1)
cm W from 101 to 110 x - H from 190 to 230 (steps of cm 1)



Push and pull opening.



Installation solutions

Complete file

Download the PDF with the technical drawings of all installation solutions of frames and subframes proposed by Di.Bi.

DOWNLOAD PDF
Show all

Documents download

Performances - Reg. EU 305/2011
Products guarantee
Checklist for taking dimensions
Instruction manuals
  • Certification 883 - Anti-intrusion 1.70 MB
    Anti-intrusion certification for security door, 883 model DOWNLOAD
  • Certification 883 - acoustic insulation 883 model 172.83 KB
    Acoustic insulation certification for security door 883 model DOWNLOAD
  • Certification 883 - Resistance to wind load 116.04 KB
    Resistance to wind load certification for 883 model DOWNLOAD
  • Certification 883 - Thermal insulation 667.89 KB
    Thermal insulation certification for security door 883 model DOWNLOAD
  • Certification of 883 model with top window - Thermal insulation 136.01 KB
    Thermal insulation for 883 model security door with top window DOWNLOAD
  • Certification 883 - watertightness 440.40 KB
    Watertightness certification for 883 security door DOWNLOAD
  • Guarantee for Di.Bi. products 25.95 KB
    Guarantee statement for all Di.Bi. products (rev. July 2018) DOWNLOAD
  • Form Installation Check 571.32 KB
    Form for the Installation Check - to be used after the installation DOWNLOAD
  • Checklist for taking dimensions of security doors 2.34 MB
    Checklist for a proper procedure for taking dimensions of security doors (rev.2014-05-07) DOWNLOAD
  • Installation instructions for Electro-Mechanical locking system 4.18 MB
    Installation instructions for Mottura B-Nova Electro-Mechanical locking system DOWNLOAD
  • Assembly instructions for frame sol. B (with top window) 310.13 KB
    DOWNLOAD
  • Instruction manual for the installation of frames on 1 leaf security doors 1.70 MB
    Instruction manual for the installation of frames on subframes of 1 leaf Di.Bi. security doors (rev. 07/2020) DOWNLOAD
  • Instruction manual for the installation and adjustment of security doors with regular hinges 1.22 MB
    Instruction manual for the installation and adjustment of Di.Bi. security doors with regular hinges (rev. 07/2020) DOWNLOAD
  • Instruction manual for fingerprint cabeling 300.92 KB
    DOWNLOAD
  • Instruction manual for the installation and use of eKey fingerprint 1.37 MB
    DOWNLOAD
Price list
  • Price list - Steel Frames 413.12 KB
    Price list August 2021. Update January 3rd 2022 + 5% DOWNLOAD
  • Price list - Alu frames 84.87 KB
    Price list August 2021. January the 3rd 2022 +5% on the overall price list DOWNLOAD
  • Steel Frames price list 2020 396.82 KB
    Steel Frames price list (Rev. September 2020) DOWNLOAD
  • Aluminium Frames price list 2014 229.33 KB
    Aluminium Frames price list 2014 DOWNLOAD
  • Opentech single leaf price list 2016 153.38 KB
    Opentech Price List (November 2016) DOWNLOAD
